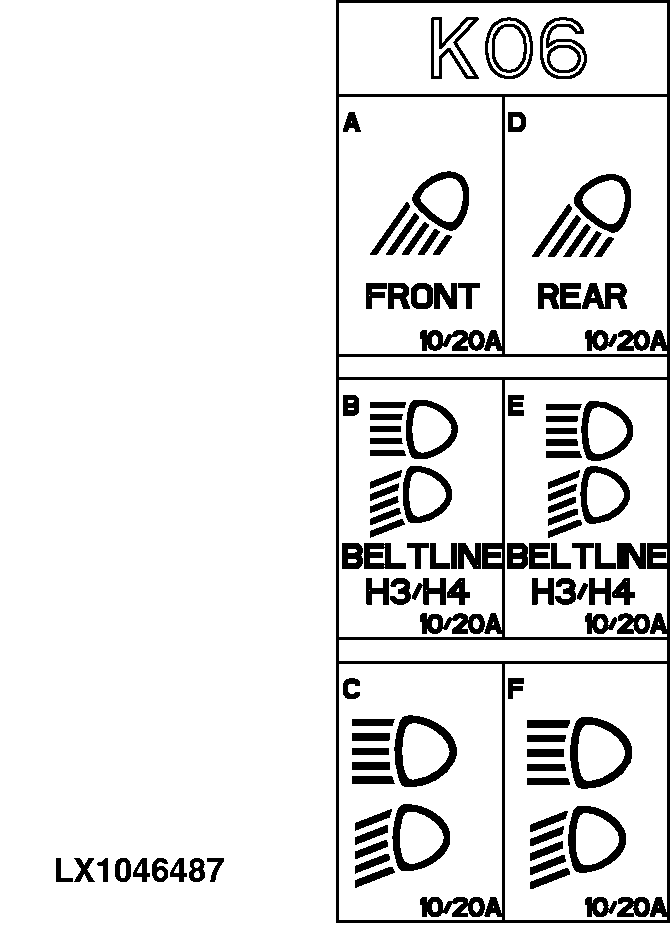

Relays K06 (Cab)
LX1046487-UN-03JUL08
|
Number |
Capacity (amps) |
Designation |
|---|---|---|
|
K06/A |
10/20 amps |
Relay for worklights on front of cab roof |
|
K06/B |
10/20 amps |
Relay for worklights on cab frame Relay for lights on cab frame |
|
K06/C |
10/20 amps |
Relay for high-beam headlights |
|
K06/D |
10/20 amps |
Relay for worklights on rear of cab roof |
|
K06/E |
10/20 amps |
Relay for lights on cab frame |
|
K06/F |
10/20 amps |
Relay for low-beam headlights |
|
OU12401,0001A71-19-20080826 |
