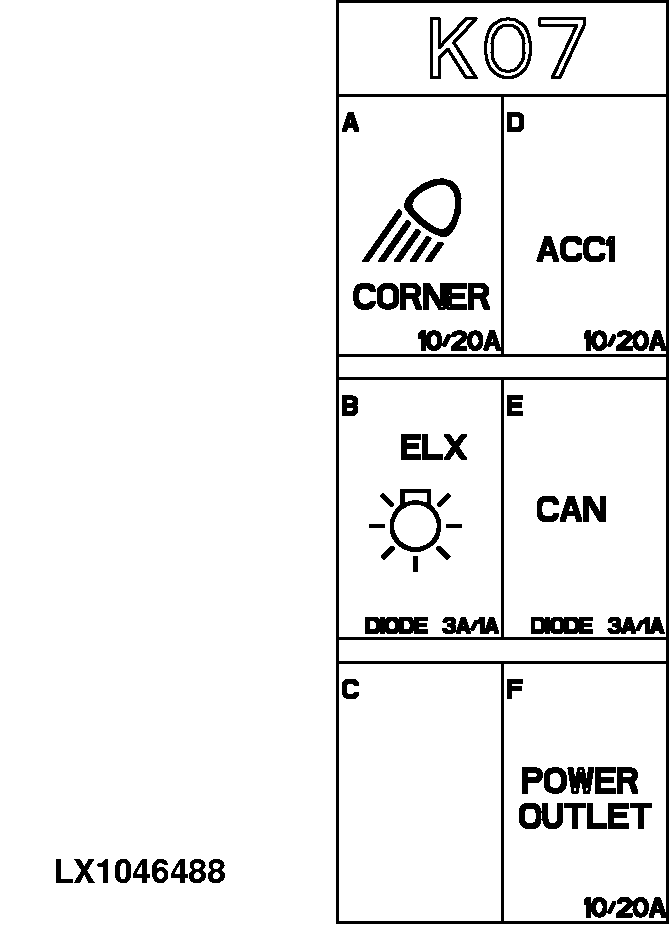

Relays/Diodes K07 (Cab)

LX1046488-UN-03JUL08

Number	Capacity (amps)	Designation
K07/A	10/20 amps	Relay for front corner worklights
K07/B	1 amp	Diode for power supply to electronics
K07/B	3 amps	Diode for lights
K07/C	-	Not used
K07/D	10/20 amps	Relay for power supply to accessories
K07/E	1 amp	CAN-BUS diode
K07/E	3 amps	CAN-BUS diode
K07/F	10/20 amps	Relay for 3-terminal power outlet socket, power outlet strip
