Super Comfort Seat

LX1048327-UN-04JUN09

LX1048328-UN-04JUN09

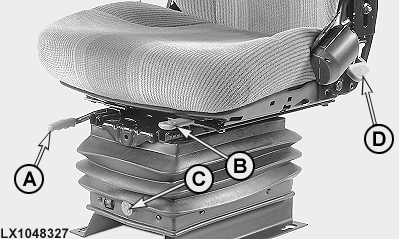

A - Lever for horizontal adjustment

B - Lever for fore/aft suspension

C - Button for height and weight adjustment

D - Backrest tilt

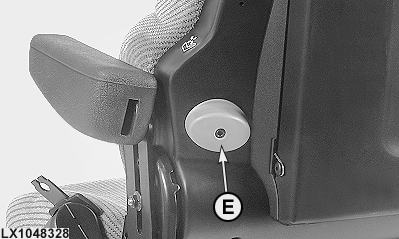

E - Lumbar support adjustment

Fore/aft suspension:

• Lever (B) to the right - Fore/aft suspension
• Lever (B) to the left - No fore/aft suspension

To adjust height and weight when a load is applied to the seat, push or pull button (C). When the seat is set to the weight of the operator, a green mark appears in the display window.
