Engage the Differential Lock

LX1033533-UN-20NOV03

Differential lock switch, tractors without HMS

LX1030792-UN-29JAN03

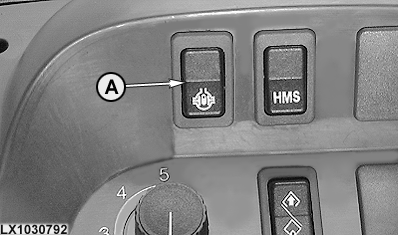

Differential lock switch, tractors with HMS

CAUTION: Do not attempt to steer the tractor with the differential lock engaged.

If wheel slip varies greatly between rear wheels, engage differential lock using switch (A) (only if the difference in speed is not too high). To disengage the differential lock, depress the brake pedal.

If tractor speed exceeds 21 km/h (13 mph) with the differential lock engaged, the differential lock switches off automatically.

When tractor speed drops below 21 km/h (13 mph) again, the differential lock must be engaged manually by the driver.
