Selective Control Valves

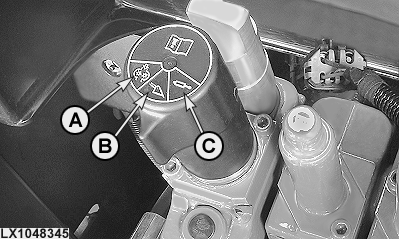

LX1048345-UN-15JUN09

The tractor may be equipped with one of three different types of selective control valve: 105 Series, 205 Series or 305 Series.

105 Series selective control valves provide the functions Raise, Neutral and Lower. 205 and 305 Series selective control valves provide an additional Float position.

305 Series selective control valves also offer the following choices:

• Position (A). The control lever remains in the Raise or Lower position until it is moved manually.
• Position (B). The control lever moves to Neutral as soon as it is released.
• Position (C). The control lever remains in the Raise or Lower position until the pressure in the oil circuit has reached a predetermined value (e.g. when the remote control cylinder has reached its end position).
