Sockets

LX1045016-UN-05AUG08

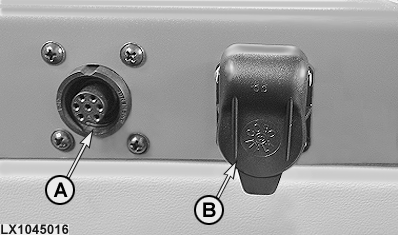

The 7-terminal signal socket (A) is protected by a 30-amp fuse.

Terminal 15/30 of 3-terminal power outlet socket (B) is protected by a 30-amp fuse, and terminal 82 by a 10-amp fuse. Terminal 31 is ground.

Turn key in main (key) switch to the right to supply power to terminal 82. Terminal 15/30 is supplied with power even when the ignition is switched off.

IMPORTANT: Electrical equipment requiring high current inputs may be operated, and the use of multiple power outlets is permitted, but the supply circuit must never be overloaded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.

Routing the cables

LX1045017-UN-05AUG08

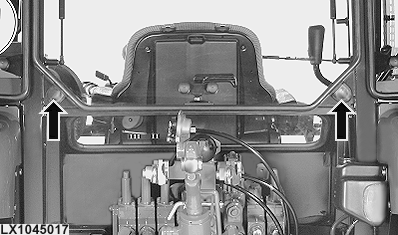

The rear window of the cab is provided with two openings, allowing the cables to be routed. Open the window and take out the rubber stoppers. Cut the rubber stoppers at the incisions provided to enable the cables to be routed. Connect the connectors, insert the rubber stoppers and close the window.
