Check Transmission/Hydraulic System Oil Level

LX1030810
LX1030810-UN-30JAN03

LX1030811
LX1030811-UN-30JAN03

IMPORTANT: Check oil level when oil is cold. If possible, check the oil level in the morning after the tractor has been standing overnight.

  1. Park tractor so that it is level.

  2. Apply the park brake. (Transmission in neutral).

  3. Lower the draft links; if equipped, lower front implements and front loader.

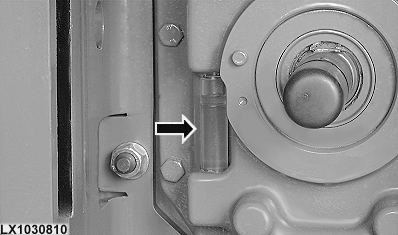

  4. Check the oil level at the sight-glass.

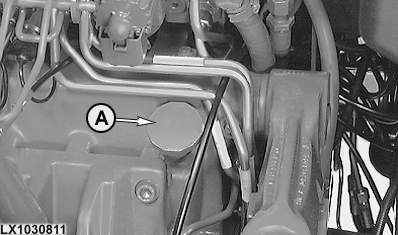

Oil level must be between the two marks. If it is not, top up with oil at the oil filler neck (A).

OU12401,0001CC5-19-20100729
