Change Transmission/Hydraulic Oil

LX1030834-UN-31JAN03

LX1030835-UN-31JAN03

LX1030836-UN-04FEB03

1. Start the engine and actuate a few hydraulic functions so that the oil heats up.

2. Park tractor so that it is level. Lower the draft links; if equipped, lower front implements and front loader.

3. Shut off engine and remove key.

4. Apply the park brake (transmission in neutral).

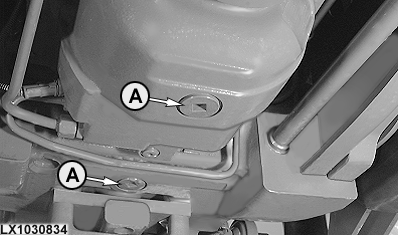

5. Remove drain screws (A).

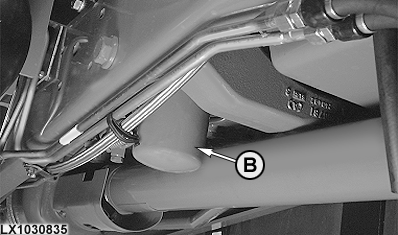

6. Replace transmission/hydraulic oil filter element (B).

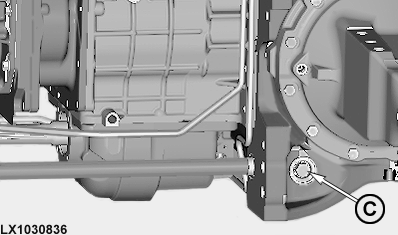

7. At the left side of the tractor underneath the rear axle, take out plug (C), remove the intake screen and wash it in diesel fuel.

8. Before refilling with fresh oil, re-install intake screen, replace seals and tighten drain screws to 50 Nm (35 lb.-ft.).

9. Add transmission/hydraulic oil to the transmission case.

For capacities, see Specifications.

Run the engine briefly and operate several hydraulic functions. Shut off engine and wait 5 minutes.

Check oil level. It must be between the marks on the sight-glass. If not, correct oil level.

Recommended oil	Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).
Capacity	55 L (14.5 U.S.gal.)
Additional requirement if reduction gear is equipped	1 L (0.3 U.S.gal.)
