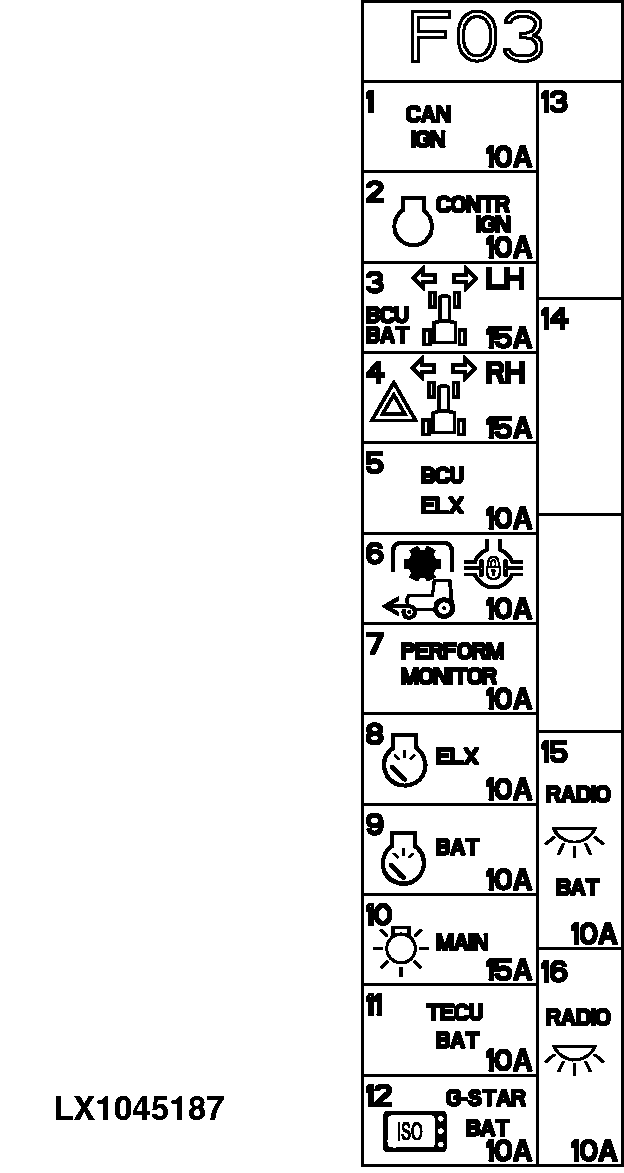

Fuses F03 (Cab)
LX1045187-UN-03JUL08
|
Number |
Rating (amps) |
Consumer |
|---|---|---|
|
F03/01 |
10 amps |
CAN BUS |
|
F03/02 |
10 amps |
ECU control unit |
|
F03/03 |
15 amps |
Left-hand turn signal |
|
F03/04 |
15 amps |
Right-hand turn signal, hazard warning lights |
|
F03/05 |
10 amps |
BCU control unit |
|
F03/06 |
10 amps |
BCU control unit (rear PTO, front PTO, front-wheel drive, differential lock, turn-signal switch, HMS Plus, park brake monitor, radar) |
|
F03/07 |
10 amps |
PRF control unit |
|
F03/08 |
10 amps |
BIF control unit |
|
F03/09 |
10 amps |
BIF control unit |
|
F03/10 |
15 amps |
Light switch |
|
F03/11 |
- |
Not used |
|
F03/12 |
- |
Not used |
|
F03/13 |
- |
Not used |
|
F03/14 |
- |
Not used |
|
F03/15 |
10 amps |
Dome light, radio |
|
F03/16 |
10 amps |
Console light, radio light, pressure gauge light |
|
OU12401,0001CCC-19-20090914 |
