Fuse on Tractors with a Battery Cut-Off Switch

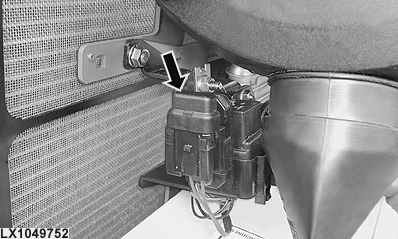

LX1049752-UN-27MAY10
This fuse is located in front of the radiator.
|
Number |
Consumer |
Rating (amps) |
|---|---|---|
|
F27 |
Unswitched power for radio, CommandCenter and GreenStar Display |
10 amp |
NOTE: Replace blown fuse with a new 10-amp fuse.
|
OULXBER,00018EC-19-20100527 |
