Change Oil at Front PTO (If Equipped)

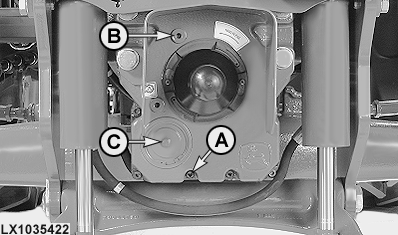

LX1035422-UN-07DEC04

A - Drain Screw

B - Filler Screw

C - Cover

1. Remove filler screw (B).

2. Remove drain screw (A) and trap the oil in a suitable container.

3. Remove the snap ring and take off cover (C). Take out and clean the oil screen.

4. Check the O-ring, install the oil screen, close the cover and install the snap ring.

5. Install drain screw (A) and tighten to 42 Nm (31 lb.-ft.).

6. Add transmission/hydraulic oil to the PTO housing. Install filler screw (B) and tighten to 42 Nm (31 lb.-ft.).

Recommended oil	Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).
Capacity	3.1 L (0.8 U.S.gal.)
