Check Torques

Tighten rear wheel retaining bolts/nuts

LX1030720-UN-13JAN03

A - 500 Nm (370 lb.-ft.)

B - 230 Nm (170 lb.-ft.)

Screws on rear wheel weights

LX009816-UN-04JAN95

LX009817-UN-02JAN95

A - 215 N·m (159 lb.-ft.)

B - Retainer Jaws

C - 215 N·m (159 lb.-ft.)

Tighten front wheel retaining bolts/nuts

LX1030721-UN-13JAN03

A - 300 Nm (220 lb.-ft.)

B - 230 Nm (170 lb.-ft.)

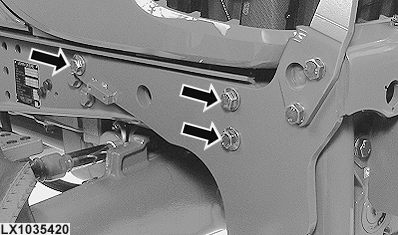

Screws of mounting frame for front three-point hitch

LX1035420-UN-07DEC04

Check screws of mounting frame for three-point hitch for tightness.

The specified torque is 550 Nm (405 lb.-ft.).

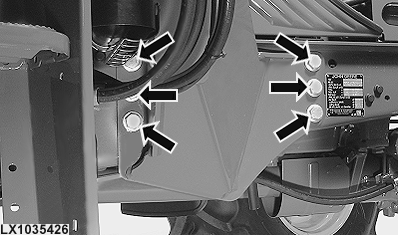

Screws of mounting frame for front loader

LX1035426-UN-10DEC04

Check screws of mounting frame for front loader for tightness.

The specified torque is 550 Nm (405 lb.-ft.).

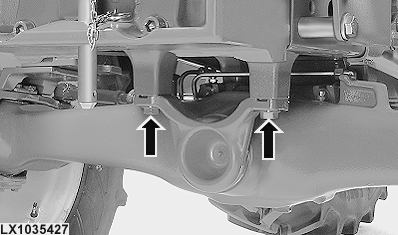

Screws of front axle mounting

LX1035427-UN-10DEC04

Check four screws of front axle mounting for tightness.

The specified torque is 550 Nm (405 lb.-ft.).

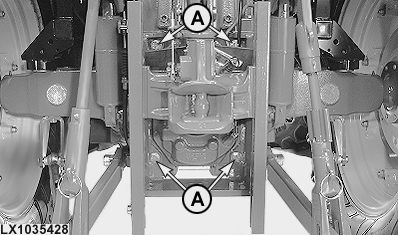

Screws/nuts of trailer hitch

LX1035428-UN-10DEC04

A - Screws

Check screws (A) of trailer hitch for tightness.

The specified torque is 310 Nm (230 lb.-ft.).

LX1035429-UN-10DEC04

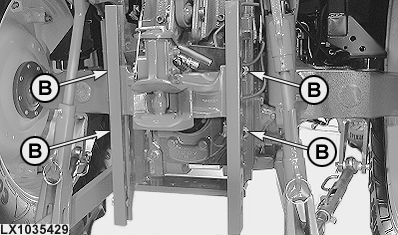

B - Nuts

The specified torque is 265 Nm (195 lb.-ft.).

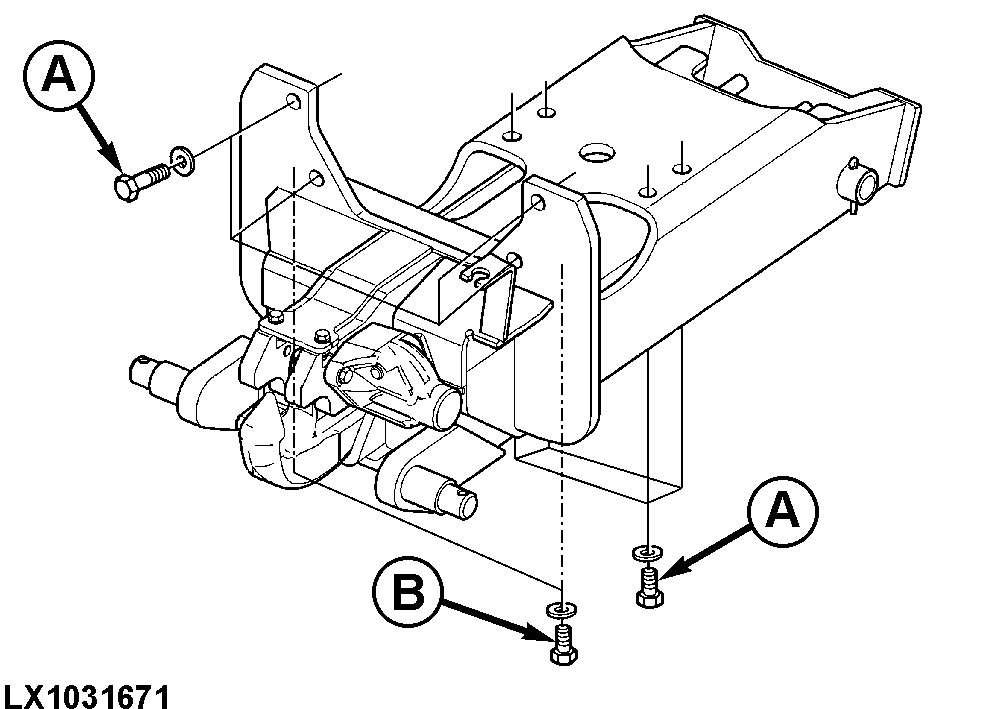

Screws of pick-up hitch

LX1031671-UN-17FEB03

A - Cap Screws

B - Hex. Socket Screws

Check torques of mounting screws.

Tighten cap screws (A) to 310 Nm (230 lb.-ft.).

Tighten hex socket screws (B; behind the front plate) to 280 Nm (208 lb.-ft.).

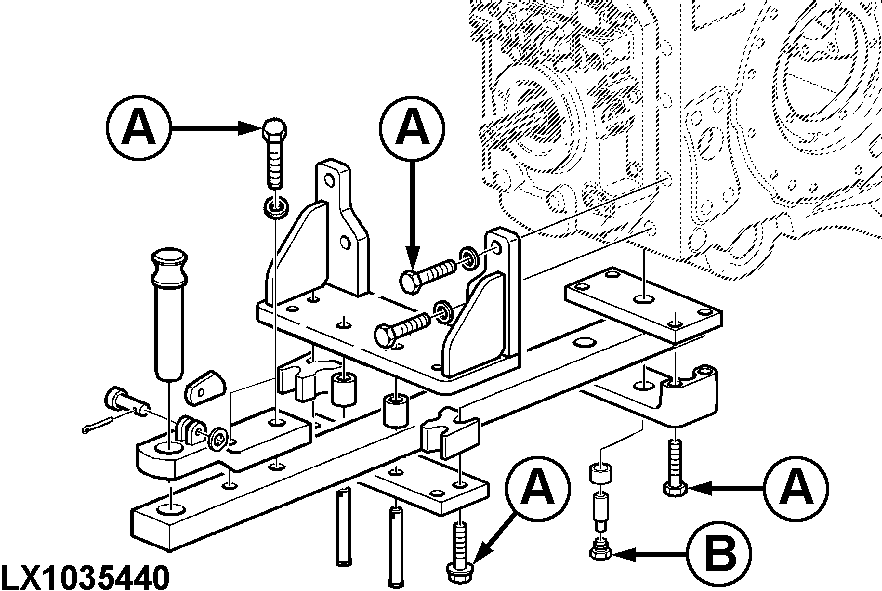

Screws of drawbar

LX1035440-UN-18JAN05

A - Cap Screws

B - Plug

Check torques of mounting screws and plug.

Tighten cap screws (A) and plug (B) to 310 Nm (230 lb.-ft.).
