Air-Conditioning System

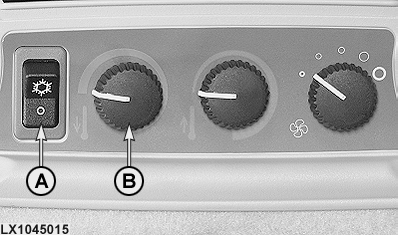

LX1045015-UN-05AUG08

A - Air-conditioning switch

B - Air-conditioning control

Turn on air-conditioning system at switch (A). Regulate the cooling effect at control (B). The cooling effect is increased by turning the knob further counterclockwise. Set the fan and louvers as desired.

IMPORTANT: To maintain consistently high performance, turn on the air-conditioning system for two or three minutes every month, regardless of weather conditions or season (with engine at low idle). Control (B) should be set for maximum cooling.

At ambient temperatures below 4 °C (39 °F), the cab should first be heated (using the heating system) so that the temperature inside the cab is as high as possible.
