Indicator Lights and Displays

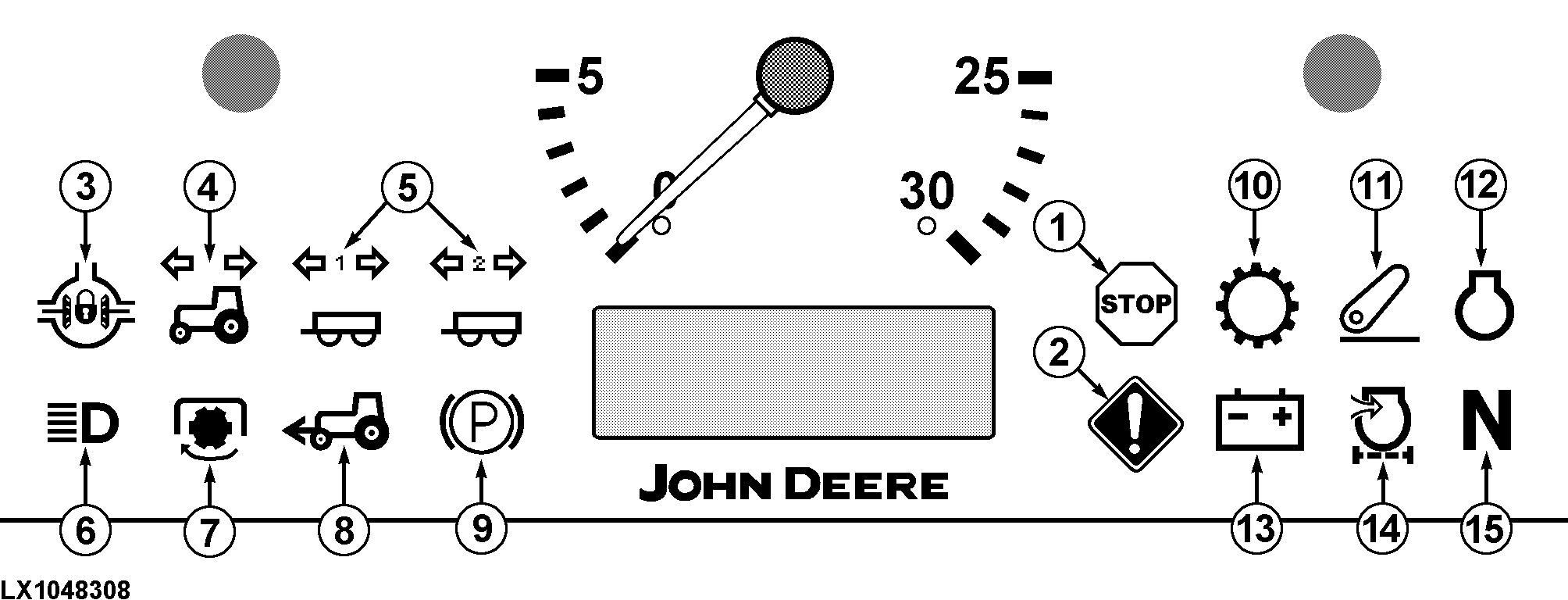

Indicator lights

LX1048308-UN-01JUL09

1-The red STOP light flashes when a serious malfunction occurs. Shut off the engine IMMEDIATELY and determine the cause.

2-The yellow CAUTION light flashes when a malfunction occurs.

3-This light comes on when the differential lock is engaged.

4-The flashing indicator light for tractor starts flashing when turn-signal or hazard warning lights are switched on.

5-The flashing indicator lights for trailer start flashing when turn-signal or hazard warning lights are switched on.

6-The high beam indicator light will glow whenever the headlights are switched on at high beam.

7-This light comes on when the rear PTO is selected.

8-This light comes on when front-wheel drive is selected.

9-This light comes on when the park brake is applied.

10-This light glows when there is a fault in the transmission.

11-This light comes on if there is a malfunction at the 3-point hitch.

12-This light comes on if there is an engine fault.

13-If alternator indicator light glows with engine running, this indicates a defect at alternator. Check alternator cables. If necessary, have the alternator checked by your John Deere dealer.

14-If air cleaner indicator light glows with engine running, the air cleaner element must be cleaned or replaced.

15-This light comes on as soon as the reverser lever is moved to neutral. It flashes if a malfunction at the transmission causes the clutch to separate. In this case, move the reverser lever to neutral and wait until the N stops flashing and remains on continuously.

Bulb test: As the engine is started, all the lights should glow for approx. 1 second. If not, a blown fuse may be the cause. Check and replace parts as necessary.

Fuel gauge

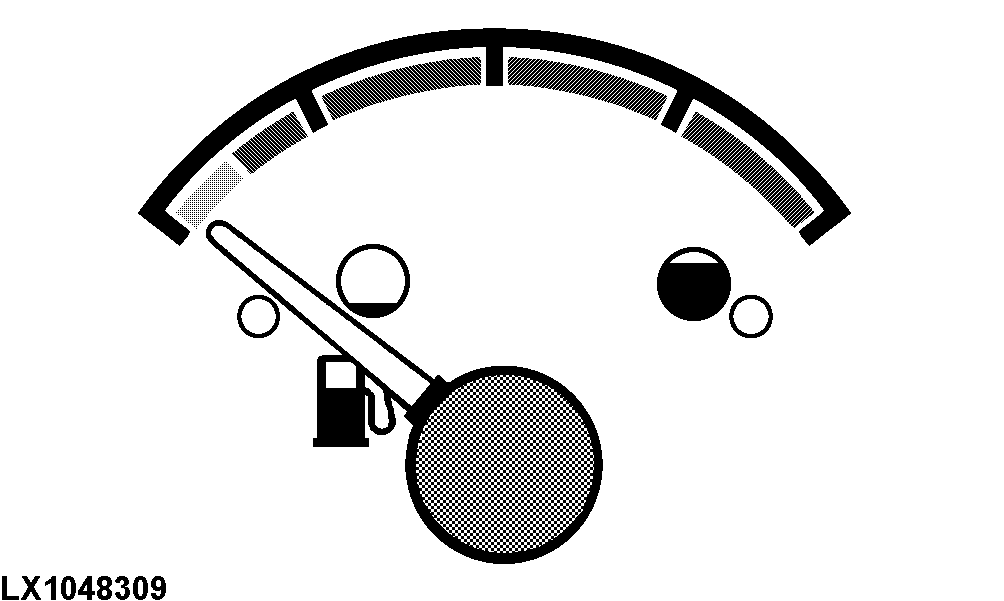

LX1048309-UN-01JUL09

The fuel gauge shows the amount of fuel in the tank, from full to empty (end of red). When the indicator needle enters the red, there are still approx. 35 liters (9.2 U.S. gal.) remaining.

NOTE: Never run the tank completely dry, otherwise you will have to bleed the fuel system.

Coolant temperature gauge

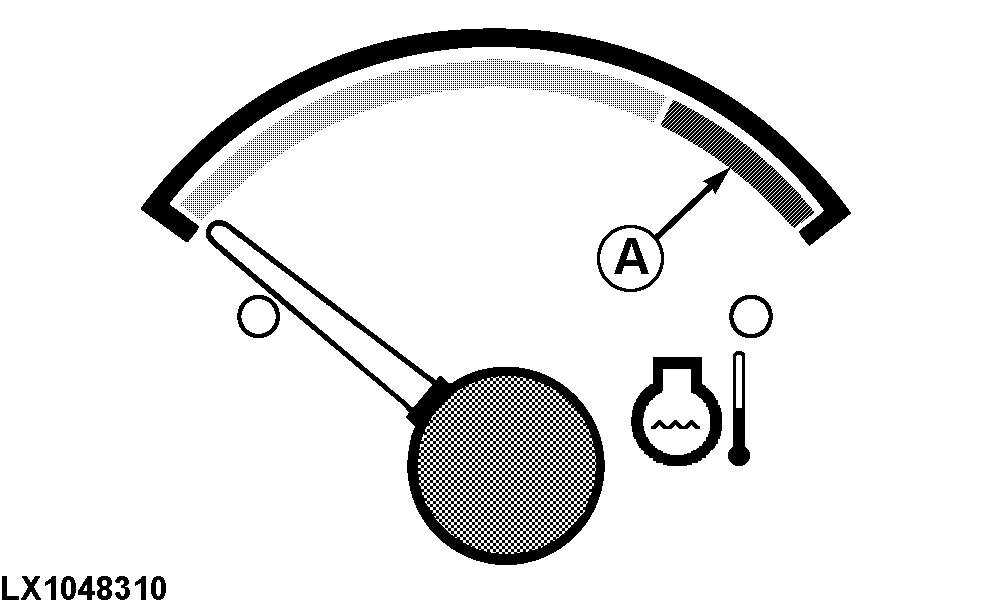

LX1048310-UN-01JUL09

If the coolant gauge needle moves into the red (A), the engine is overheating. Immediately reduce load or shift to a lower gear. If the needle remains in the red, shut off engine and determine cause of overheating (coolant level low, dirty radiator or dirty radiator screen).

Additional switches

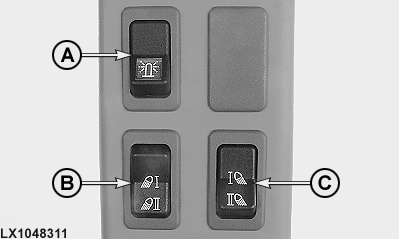

LX1048311-UN-05JUN09

A - Beacon Light Switch

B - Switch for Front Worklights

C - Switch for Rear Worklights
