Checking the Swinging Drawbar for Wear

causym CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

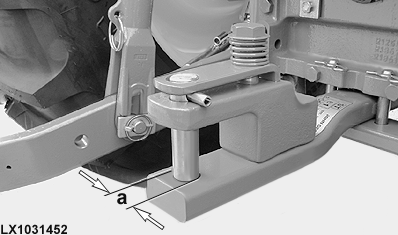

Check diameter (a) of the pin.

Specification

Swinging drawbar, pin -Wear limit or minimum diameter 29.5 mm 1.16 in.

LX1031452

LX24888,00005D2 -19-15JUL03-1/2

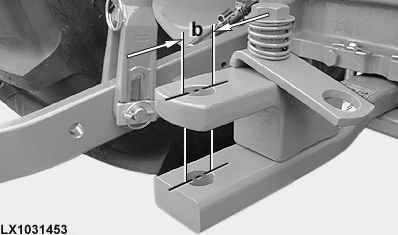

Check diameter (b) of the pin receiver hole.

Specification

Top and bottom receiver holes (measured in direction of travel) -Wear limit or maximum permitted diameter 35.0 mm (oval) 1.38 in. (oval)

LX1031453

LX24888,00005D2 -19-15JUL03-2/2
