Checking Oil Level in MFWD Axle Housing

CAUTION: If the oil is hot, it may be under pressure. Unscrew the level plug slowly.

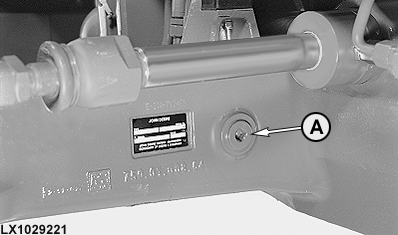

Remove level plug (A). Oil should be level with screw bore. Add oil as needed. Tighten level plug to 150 N·m (110 lb-ft). Always use a transmission oil listed in the "Fuel, Lubricants, Hydraulic Oil and Coolant" section.

NOTE: The position of the level plugs varies depending on axle type.

OU12401,0000E02 -19-01JUL03-1/1
