Air-Conditioning (Tractors without ClimaTrak)

Turn on air-conditioning at switch (A). Regulate the cooling at control (B). The cooling is increased by turning the knob counterclockwise. Set the fan and louvers as desired.

IMPORTANT: To maintain consistently high performance, turn on the air-conditioning for two or three minutes every month, regardless of weather conditions or season (with engine at low idle). Control (B) should be set for maximum cooling.

At ambient temperatures below 4°C (39°F), the cab should first be heated (using the heating system) so that the temperature inside the cab is as high as possible.

NOTE: When switch (C) is activated, the air-conditioning operates without regard to ambient temperature. This is necessary in winter, when the air-conditioning has to be operated once a month, and when the system has to be operated in conjunction with the heater to dehumidify the cab.

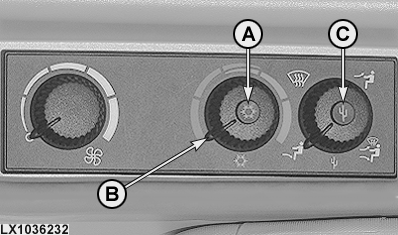

A-Air-conditioning switch
B-Cooling regulator
C-Switch for special operation

OU12401,00012CA -19-19SEP05-1/1
