Adjusting the Spreading Dimension on Hydraulic Stabilizer Bars

causym CAUTION: Adjustment and test must be performed on a level road! If performed at an incline there is a danger of accidents! Depending on the incline, the implement could swing to the left or to the right, when changing from the float position to the no-float position and vice versa. For this reason, do NOT permit bystanders to come into range of the implement.

1. Start the engine.

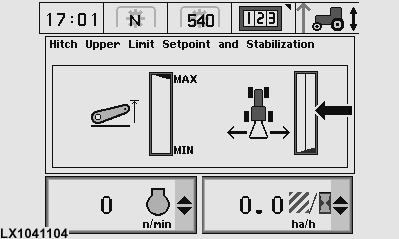

2. On the screen, move the mark all the way down (this locks the draft links over the entire lift range).

3. Measure the distance between the two attaching points on the implement.

4. Remove lock pin (A).

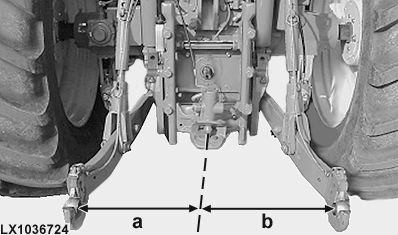

5. Adjust the distance of the draft links to the measured value using adjusting lever (B) of the stabilizer bars. Make sure that the distances (a) and (b) are identical.

6. Attach the implement to the three-point hitch.

7. Check the setting and re-adjust, if necessary.

  • There must be neither lateral sway nor preload.
  • Distances (a) and (b) must be equal.
  • The spindles must not be unscrewed beyond the third and last groove (C).

8. Move adjusting lever (B) back to its storing position and install lock pin (A).

9. Set the lock to the desired value on the screen.

10. Check the setting by raising and lowering the hitch several times.

LX1041104
LX1036724
LX1036725

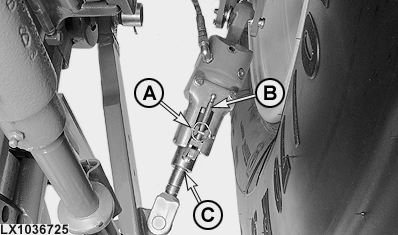

A-Lock pin
