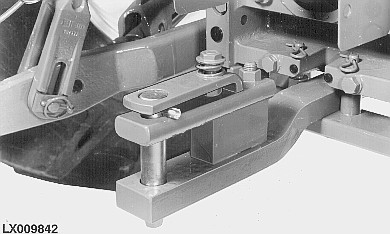

Drawbar

The drawbar is used to pull drawn equipment of all types, particularly PTO-driven implements.

The drawbar is located to increase the rear axle load and slightly reduce load on the front axle.

Besides having a variable swinging range, the drawbar can also be adjusted lengthwise.

Maximum permissible static vertical loads and towable loads are stated in the "Specifications" section.

NOTE: Drawbar components that are subject to wear have to be checked every 250 hours (see "Service / Every 250 Hours"). Replace them if necessary.

NOTE: Towing on public roads with the drawbar set to one side is not permitted!

OU12401,0001540 -19-09NOV06-1/1
