Check for Wear at Tow Hitch (Piton Fix)

causym CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

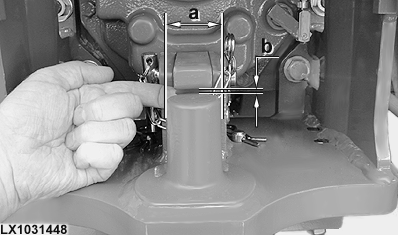

Check gap (b) at catch.

Specification

Gap at catch -Maximum permissible clearance 10.0 mm 0.39 in.

Check diameter (a) of the pin.

Specification

Pin -Wear limit or minimum diameter 41.5 mm 1.63 in.

LX1031448

OU12401,0001546 -19-09NOV06-1/1
