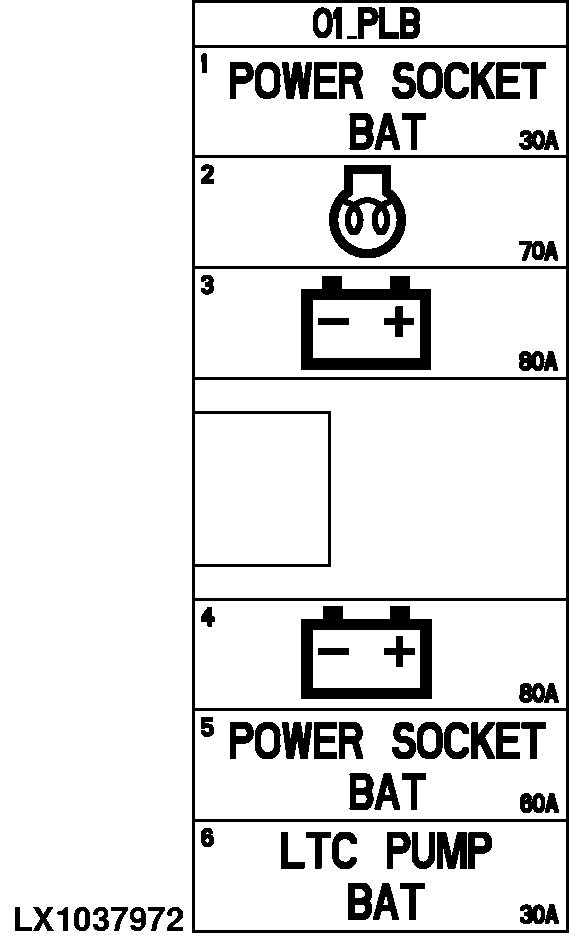

Fuses F01PLB (Engine Compartment)

Number Capacity (amps) Consumer
F01PLB/01 30 amps ISOBUS socket at rear (power supply to implement control units)
F01PLB/02 70 amps Heating element of electrical starting aid
F01PLB/03 80 amps Main fuse
F01PLB/04 80 amps Main fuse
F01PLB/05 60 amps ISOBUS socket at rear (power supply to components)
F01PLB/06 - Not used


LX1037972

OU12401,0001563 -19-17NOV06-1/1
