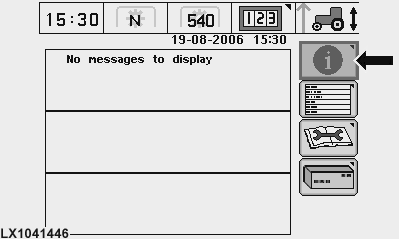

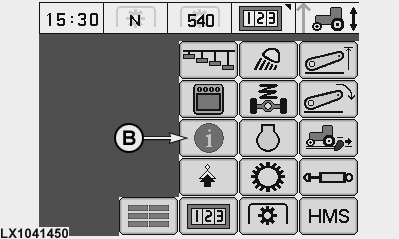

How to Access InformationPress the main menu key (A) and select the information display cell (B) on the screen. All the warning messages appear on the following screen.
|
|
OU12401,0001580 -19-19NOV06-1/4 |
|

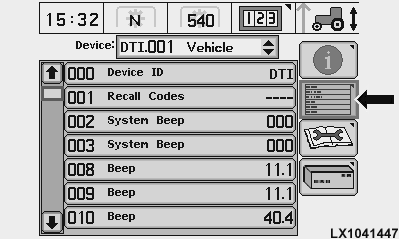

The desired control unit may be selected on the diagnostic address screen, where any "customization" that is desired may be done. |
|
OU12401,0001580 -19-19NOV06-2/4 |
|

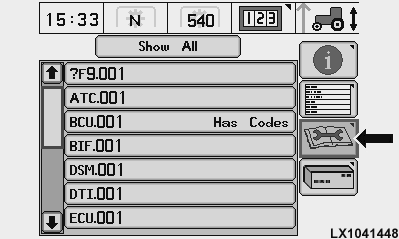

A list of control units appears and control units with diagnostic trouble codes are displayed on the diagnostic trouble code screen. This information can be forwarded to the John Deere dealer to identify problems with the machine. |
|
OU12401,0001580 -19-19NOV06-3/4 |
|

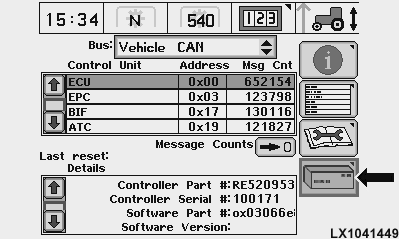

The control units that exchange data via CAN Bus are displayed on the Control Unit screen. A counter displays the number of messages of the relevant control unit. |
|
OU12401,0001580 -19-19NOV06-4/4 |
