Center Link

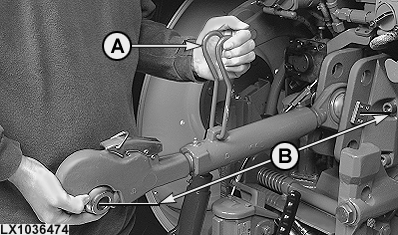

Length of center link can be adjusted using adjusting handle (A).

  • Minimum length 587 mm (23.1 in.)
  • Maximum length 782 mm (30.8 in.)

Do not deviate from the specified dimensions. Grooves in the thread indicate the maximum permitted setting. The threads must not be unscrewed any further out of the receiver. After adjusting, push handle down again over center link. Insert attaching pin through implement mast and center link, and secure.

LX1036474


A-Adjusting handle
B-Length

OU12401,00015B3 -19-14DEC06-1/1
