Adjusting Spreading Dimension

Drive tractor to the center of the implement. Remove ring (B) and lift flap cover (A). Use lever (H) to adjust the spreading dimension.

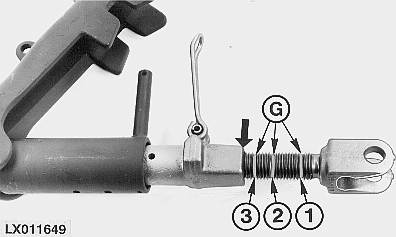

Grooves (G) provide a guide in adjusting the spreading dimension.

The groove (G) that corresponds to the relevant category should be aligned with the edge (see arrow).

Then locate lever (H) on pin (C), put down flap cover (A) and secure with ring (B). Finally, adjust spacer (D).

IMPORTANT: The spreading dimension must be large enough to prevent the draft links (E) from getting caught on sway blocks (F). If not, mechanical damage may occur.

A-Flap cover
B-Ring
C-Pin
D-Spacer
E-Draft link
F-Sway block
G-Grooves corresponding to Category
H-Lever

OU12401,00015B6 -19-14DEC06-1/1
