Installing Front Weights

One basic weight (A) and up to 18 front weights (B) may be installed.

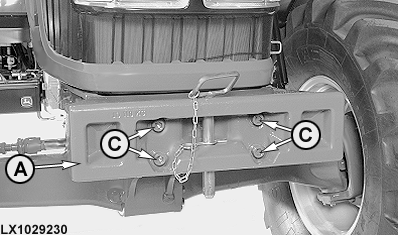

IMPORTANT: Tighten attaching screws (C) on basic weight (A) to 600 N·m (440 lb-ft) and screws (D) of additional weights (B) to 230 N·m (170 lb-ft).

Up to 18 additional weights (B) may be installed on the tractor.

Each additional weight weighs 50 kg (110 lb). Each increase in weight of 10 kg (22 lb) increases the front axle load by approx. 12 kg (26.5 lb).

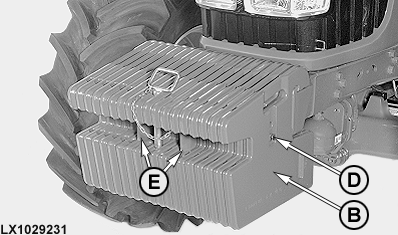

IMPORTANT: When installing six or more additional weights, they must be installed to form a jaw (E).

The jaw hitch should be used for shunting and towing on hard-surfaced roads only.

OU12401,00015BB -19-15DEC06-1/1
