Adjustment of Drawbar

The drawbar can be adjusted to three different lengths:

250 mm (9.8 in.), 350 mm (13.8 in.) and 400 mm (15.7 in.).

These lengths determine the distance from the end of the PTO shaft to the attachment point of the drawbar.

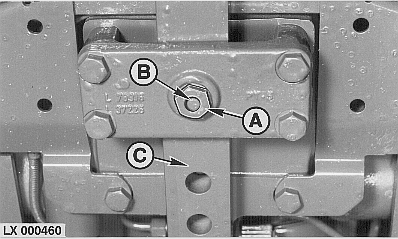

1. Remove hex. plug (A).
2. Remove locking pin (B).
3. Move drawbar (C) to desired position and reinstall locking pin.
4. Tighten hex. plug (A) to 250 N·m (185 lb-ft).
