Engage the Front-Wheel Drive

Front-wheel drive can be engaged and disengaged in all gears (forward and reverse), on-the-go and under load without using the clutch.

NOTE: Disengage front-wheel drive before driving at high speed on public roads.

NOTE: When braking with both brake pedals, front-wheel drive engages automatically regardless of the position selected at the front-wheel drive switch. The front-wheel drive indicator light comes on.

When the automatic mode is selected, front-wheel drive disengages automatically whenever tractor speed exceeds 23.3 km/h (14.5 mph).

When tractor speed drops below 21 km/h (13 mph), front-wheel drive re-engages automatically.

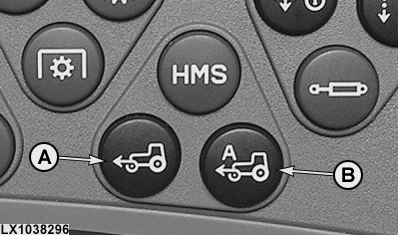

A-Engage / disengage front-wheel drive
B-On/off switch for automatic mode

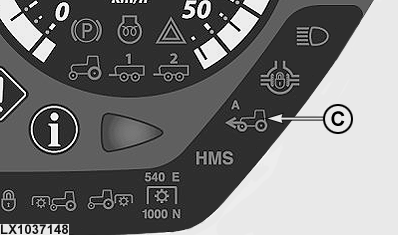

C-Indicator light comes on when front-wheel drive is engaged

OU12401,0001676 -19-22MAR07-1/1
