Engage the Differential Lock

causym CAUTION: Do not attempt to steer the tractor with the differential lock engaged.

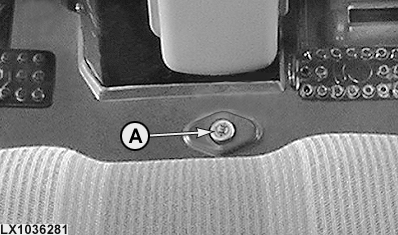

If wheel slip varies greatly between rear wheels, engage differential lock by means of button (A) (only if the difference in speed is not too high). To disengage the differential lock, depress brake pedal or actuate button (A) again.

If tractor speed exceeds 23.3 km/h (14.5 mph) with the differential lock engaged, the differential lock switches off automatically.

When tractor speed drops below 23.3 km/h (14.5 mph) again, the differential lock must be engaged manually by the driver.

LX1036281

OU12401,0001677 -19-22MAR07-1/1
