| Number |
Capacity (amps) |
Consumer |

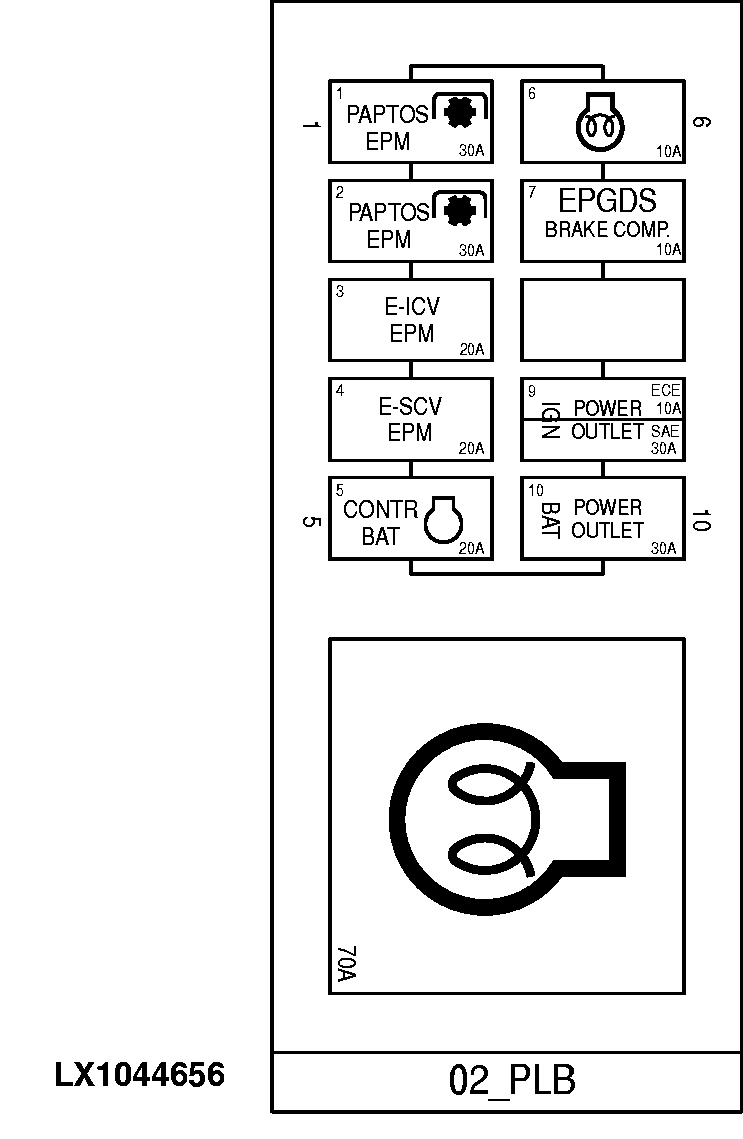

| F02PLB/01 |
30 amps |
Magnetic coils for PTO speeds |
| F02PLB/02 |
30 amps |
Magnetic coils for PTO speeds |
| F02PLB/03 |
20 amps |
E-ICV stepper motors |
| F02PLB/04 |
20 amps |
E-SCV stepper motors |
| F02PLB/05 |
20 amps |
ECU (engine control unit) |
| F02PLB/06 |
10 amps |
Monitoring of electrical starting aid |
| F02PLB/07 |
- |
Not used |
| F02PLB/08 |
- |
Not used |
| F02PLB/09 |
30 amps |
3-terminal socket, power outlet strip, 7-terminal socket (SAE) |
| |
10 amps |
3-terminal socket, socket strip (ECE) |
| F02PLB/10 |
30 amps |
3-terminal socket, socket strip |
