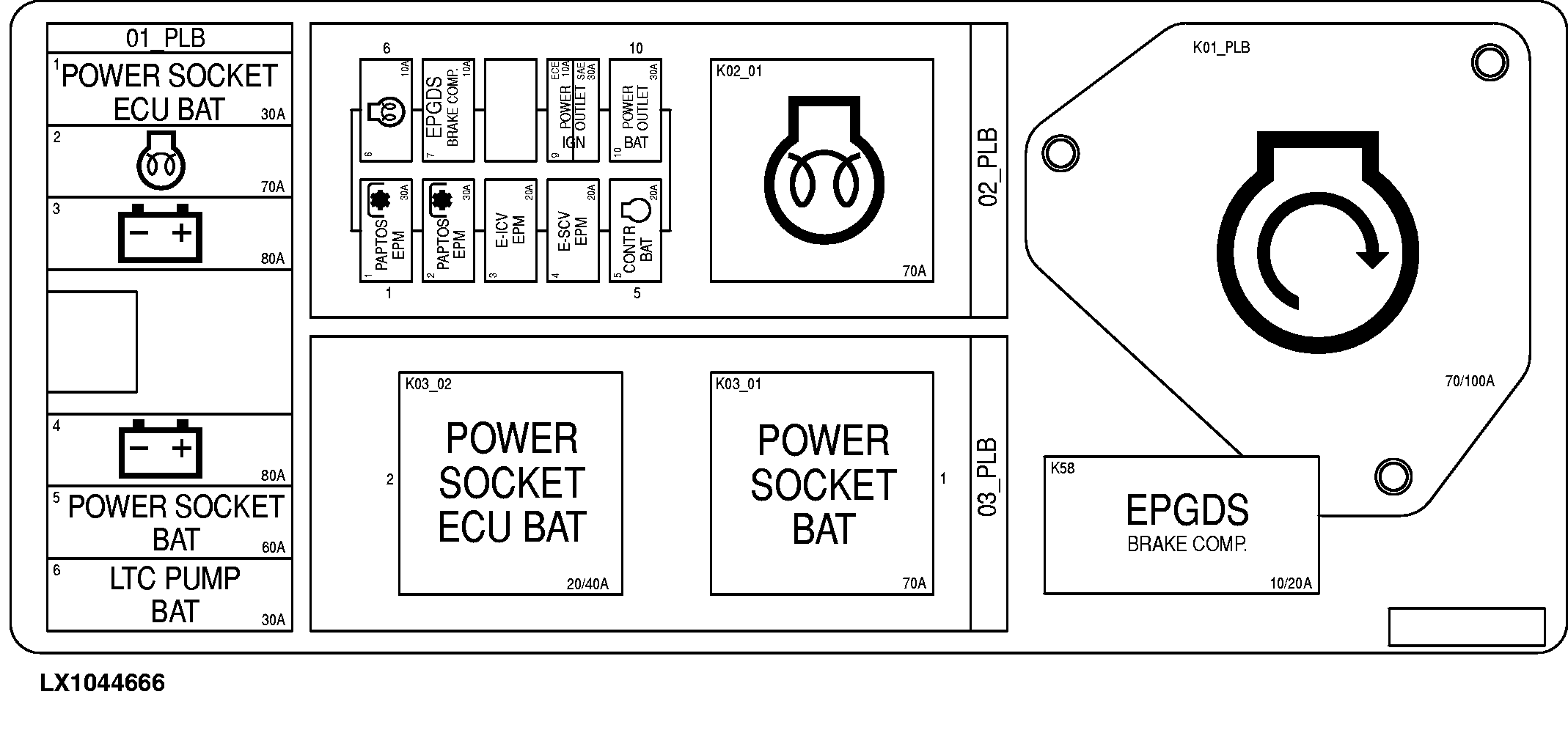

Relays K01PLB to K03PLB (Engine Compartment)
Number
Capacity (amps)
Designation
K01PLB
70/100 amps
Starting motor relay
K02PLB/01
70 amps
Relay for electrical starting aid
K03PLB/01
70 amps
Relay for power supply to ISOBUS socket at rear
K03PLB/02
20/40 amps
Relay for power supply to implement control units (ISOBUS socket) at rear
K58
-
Not used
OU12401,0001919 -19-10DEC07-1/1
