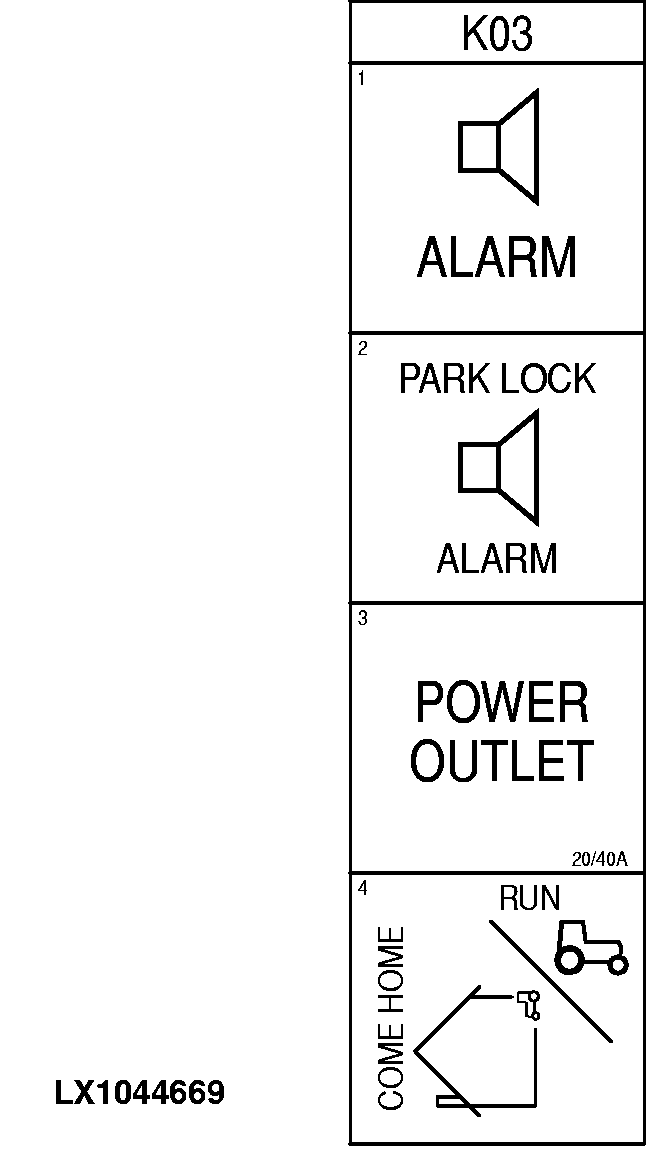

Relays K03 (AutoPowr/IVT)
| Number |
Capacity (amps) |
Designation |
| K03/01 |
- |
Acoustic alarm |
| K03/02 |
- |
Acoustic alarm for park lock |
| K03/03 |
20/40 amps |
Relay for 3-terminal socket, power outlet strip, 7-terminal socket (SAE) |
| K03/04 |
- |
Plug for "come home" mode |
|
|
|
|
OU12401,000192C -19-10DEC07-1/1
|
|
