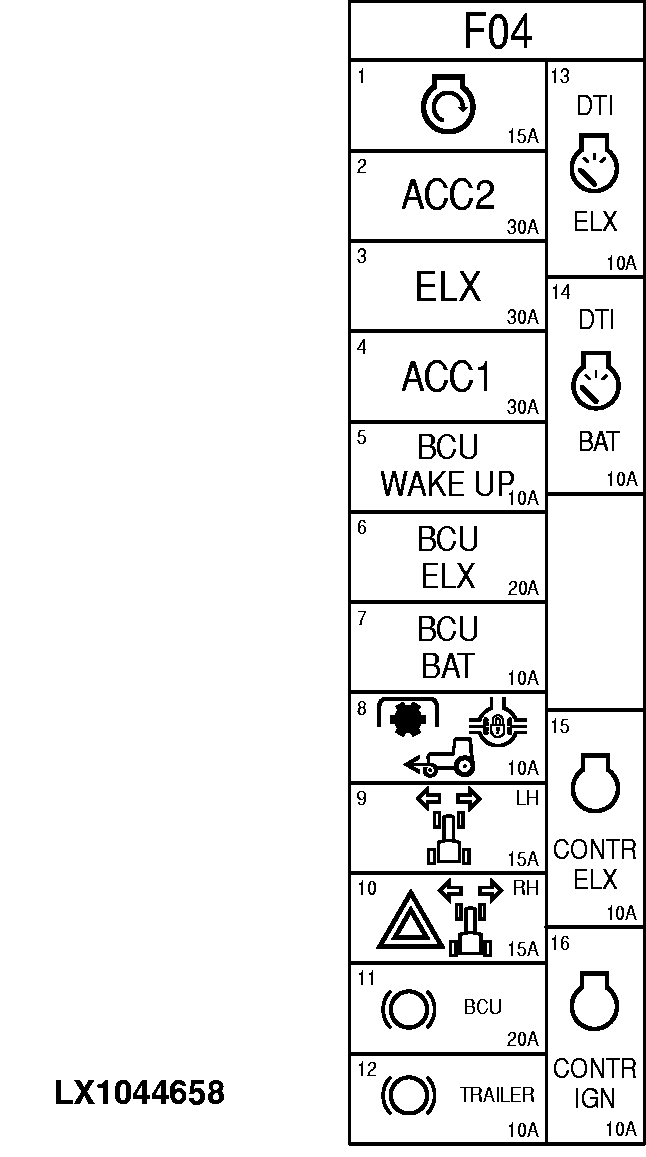

Fuses F04 (AutoPowr/IVT)
| Number |
Capacity (amps) |
Consumer |
| F04/01 |
15 amps |
Main (key) switch |
| F04/02 |
30 amps |
Power supply to accessories |
| F04/03 |
30 amps |
Power supply to electronics |
| F04/04 |
30 amps |
Power supply to accessories |
| F04/05 |
10 amps |
PC0 control unit, PC6 control unit, CAN-BUS (vehicle), BCU activation |
| F04/06 |
20 amps |
BCU (basic control unit) |
| F04/07 |
10 amps |
BCU (basic control unit) |
| F04/08 |
10 amps |
BCU control unit (rear PTO, front PTO, front-wheel drive, differential lock, HMS Plus, handbrake monitor, radar) |
| F04/09 |
15 amps |
Left-hand turn signal |
| F04/10 |
15 amps |
Right-hand turn signal, hazard warning lights |
| F04/11 |
20 amps |
Brake switch |
| F04/12 |
10 amps |
Brake lights |
| F04/13 |
10 amps |
BIF control unit, BIF control unit (wipers), DTI control unit |
| F04/14 |
10 amps |
BIF control unit, DTI control unit |
| F04/15 |
10 amps |
ECU (engine control unit) |
| F04/16 |
10 amps |
ECU (engine control unit) |
|
|
|
|
OU12401,000192E -19-10DEC07-1/1
|
|
