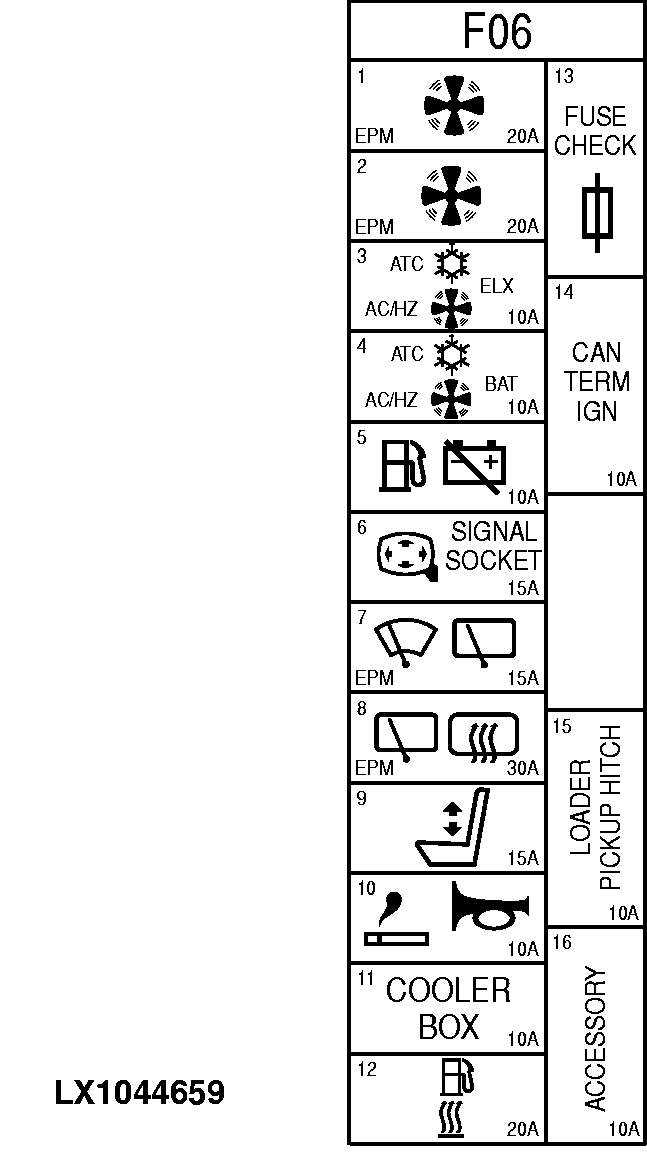

Fuses F06 (AutoPowr/IVT)
| Number |
Capacity (amps) |
Consumer |
| F06/01 |
20 amps |
Fan motor |
| F06/02 |
20 amps |
Fan motor |
| F06/03 |
10 amps |
ATC/ETC/HTC control unit |
| F06/04 |
10 amps |
ATC/ETC/HTC control unit, radio |
| F06/05 |
10 amps |
Fuel pump, battery cut-off switch |
| F06/06 |
15 amps |
Electrical rear-view mirrors, signal socket |
| F06/07 |
15 amps |
Windshield wiper motor, rear window wiper motor |
| F06/08 |
30 amps |
Rear window wiper motor, rear window heater |
| F06/09 |
15 amps |
Operator's seat |
| F06/10 |
10 amps |
Cigarette lighter, horn |
| F06/11 |
10 amps |
Electrical cooling compartment |
| F06/12 |
20 amps |
Fuel preheater |
| F06/13 |
- |
Fuse tester |
| F06/14 |
10 amps |
CAN BUS (power train) |
| F06/15 |
10 amps |
Plug for front loader, electro-hydraulic pick-up hitch |
| F06/16 |
10 amps |
Plug for accessories |
|
|
|
|
OU12401,0001930 -19-10DEC07-1/1
|
|
