Electro-Hydraulic Pick-Up Hitch

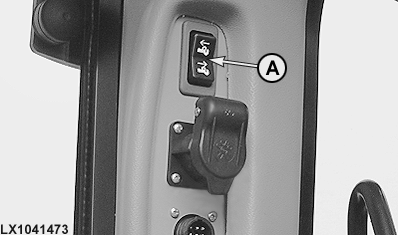

This pick-up hitch can be operated via the rear hitch and switch (A).

2. Pull release lever (B) and hold it until the hitch hook has moved from the stored position (lever remains in "open" position).

3. Use switch (A) to extend the hitch hook fully (press the bottom part of the switch).

4. Lower draft links/hitch hook to desired height.

5. Raise draft links to engage hitch hook in trailer towing eye, then continue to raise the hitch fully.

6. Use switch (A) to retract the hitch hook fully until it is fully locked (lever (B) returns to its starting position).

7. Lower the draft links.

8. Check that the hitch is locked correctly. It will not lower when the draft links are lowered and not extend when the switch is operated.

IMPORTANT: If the release lever is hard to operate or locking the hitch hook is not performed automatically (step 2 or step 6 above), have your John Deere dealer check the setting of the lift links or of the pick-up hitch hook.

A-Switch
B-Release lever
1-Hitch in position for attaching trailer
2-Hitch in stored position

OU12401,0001986 -19-22JAN08-1/3

CAUTION: Before driving away, make sure the hitch is fully raised and locked in both horizontal and vertical positions.

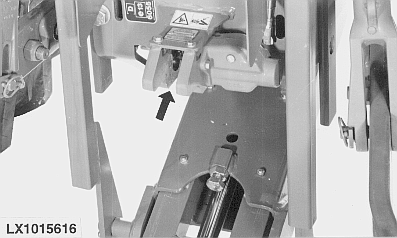

With the hitch lowered, NEVER reach into the receiver opening (see arrow). Danger of injury!

NOTE: Pick-up hitch components that are subject to wear have to be checked every 250 hours (see "Service / Every 250 Hours"). Replace them if necessary.

Maximum permissible static vertical loads and towable loads are stated in the "Specifications" section.

OU12401,0001986 -19-22JAN08-2/3

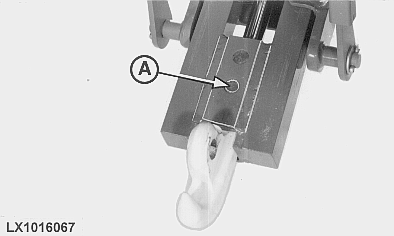

Hook of pick-up hitch can be replaced by a drawbar without the use of tools. To do so, lift out pin (A).

The part not required can be stored in a holder on the side-frame.
