Intelligent Power Management (Power Boost) - Optional Equipment

NOTE: Power boost is activated automatically when starting the engine.

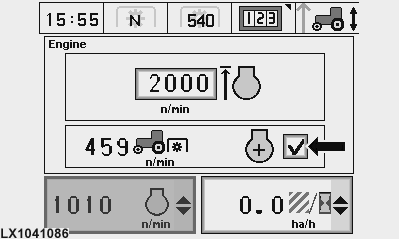

To de-activate or re-activate power boost, press engine button (A) and make a choice on the screen.

If power boost is activated at the CommandCenter, then the following applies:

a) Transport work
Engine power is increased automatically when ground speed exceeds 15 km/h (9.3 mph). This power boost persists until the ground speed drops below 10 km/h (6.2 mph).

b) PTO operation
When using PTO-driven implements, engine power is increased gradually when ground speed exceeds 1 km/h (0.6 mph), if the tractor electronic system detects a correspondingly high PTO power requirement. Full power becomes available from a speed of 2.5 km/h (1.5 mph).

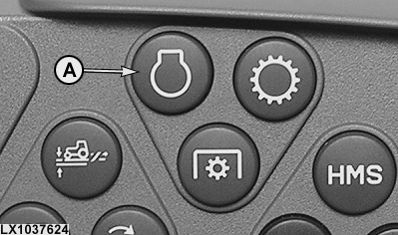

A-Engine button

OU12401,00019B0 -19-23APR08-1/2

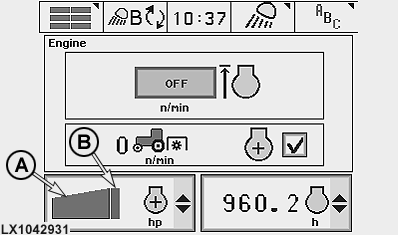

Fields (A) and (B) display the current engine power (light green color).

• Field (A) represents the power range up to rated engine power.
• Field (B) represents the John Deere power bulge (above rated power).
• The power boost achieved by the "Intelligent Power Management" system for PTO operation and transport work is displayed in field (B) (dark green color).

A-Engine power below rated power
B-Engine power above rated power

OU12401,00019B0 -19-23APR08-2/2
