Hitch Control

The hitch is controlled by means of hitch control lever (A) and raise/lower switch (B). Button (C) is used to select the lift-limit screen.

To prepare the hitch for operation, start the engine and either:

• move control (A) to the position that corresponds to the position of draft links,
• move control (A) to one of the end positions, or
• actuate raise/lower switch (B).

Pull control (A) towards "0" to raise implement
Push control (A) towards "9" to lower implement

The implement can be raised and lowered independently of control lever (A) by means of raise/lower switch (B). This is of assistance when turning at the end of a field , for example. If raise/lower switch (B) is pulled back, the implement is raised as high as the raise-limit setting. If raise/lower switch (B) is pushed forward, the implement is lowered as far as the setting at control lever (A).

To obtain working depth quickly in compact soil at the headland (quick lower), keep raise/lower switch (B) pressed. As long as raise/lower switch (B) is pressed, the adjusted draft force is not active (override function). If raise/lower switch (B) is released, the implement returns to the previous settings.

This "quick lower" function will only work if:

• the implement has been raised using switch (B)
• the implement is lowered continuously from raised position using switch (B)

A-Hitch control
B-Raise/lower switch

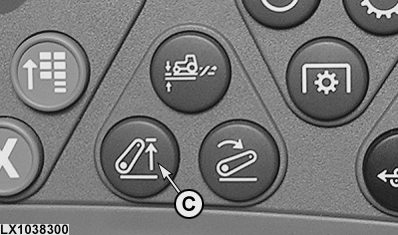

C-Lift-limit button

OU12401,0001A97 -19-20SEP08-1/2

Pull control lever as far as it will go (beyond "0") - hitch is locked.

OU12401,0001A97 -19-20SEP08-2/2
