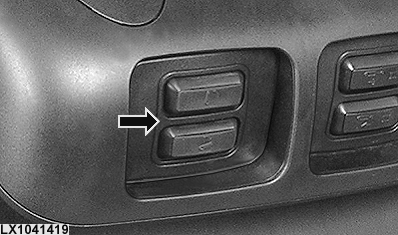

Hitch Control on Fender

These switches allow the hitch to be operated from the fender. For safety reasons, the hitch rises and drops at a slower rate. The height and depth values are ignored.

Push upper switch - Raise implement

Push lower switch - Lower implement

NOTE: Once the fender control has been activated, the hitch is prevented from moving accidentally. To prepare the hitch for operation again, either:

• move hitch control (A) to the position that corresponds to the position of the draft links,

• move control (A) to one of the end positions, or

• actuate raise/lower switch (B).

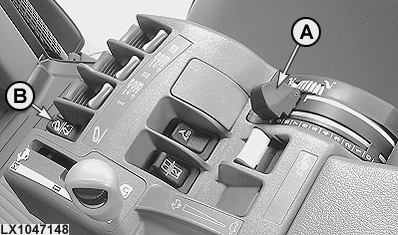

A-Hitch control
B-Raise/lower switch

OU12401,0001A98 -19-13SEP08-1/1
