Transporting Mounted Implements

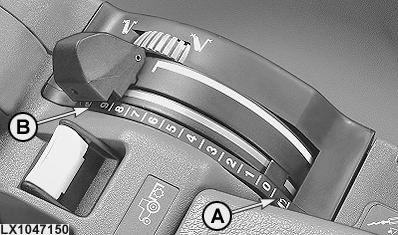

Raise mounted implement fully by pulling hitch control lever as far as it will go to the rear (beyond "0") (A).

For a towed implement, push the hitch control lever as far as it will go to the front (B).

A-Implement without wheels
B-Implement with wheels

OU12401,0001A99 -19-13SEP08-1/1
