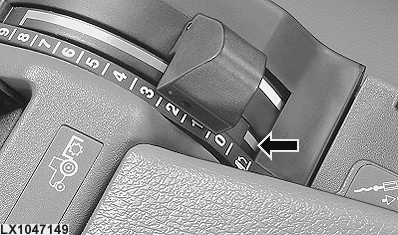

Hitch DampeningThe tractor is equipped with a hitch dampening function that prevents the tractor from "pitching" when travelling with a raised implement. To activate the dampening function, first move the hitch control lever (with the engine running) to the position that corresponds to the position of the draft links. Then pull it as far as it will go to the rear (beyond "0") to the transport position (see arrow). Rate of drop must not be set at the minimum value. To switch off the dampening function, push the hitch control lever forward from the transport position to a position beyond "0" (in the "lower" direction). NOTE: Using the remote control and switching off the engine both have the effect of switching off the hitch dampening function. |
|
OU12401,0001A9A -19-13SEP08-1/1 |
