Adjusting Tread on Front Wheels (Adjustable Rims)
|
|
Wheel tread can be adjusted by replacing or reversing the wheel rims. Additional tread widths can be achieved by using spacers. In addition the complete wheel can be installed on the other side of the tractor. In doing so, maintain the direction of tire rotation. |
NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.90 m (75 in.). |

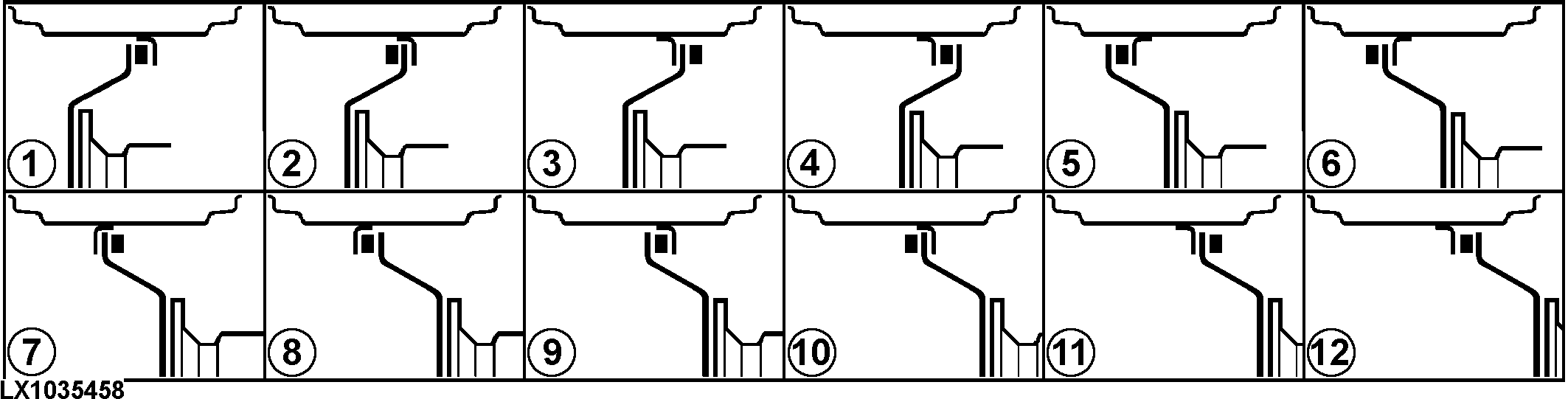

| Positions of rims, wheel disks and spacers |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
| mm (in.) |
1618 (63.7) |
1648 (64.9) |
1680 (66.1) |
1710 (67.3) |
1814 (71.4) |
1844 (72.6) |
1878 (73.9) |
1908 (75.1) |
2018 (79.4) |
2048 (80.6) |
2080 (81.9) |
2110 (83.1) |
| Tires: | ||||||||||||
| 16.9R30 | - | - | - | - | x | x | x | x | x | x | x | x |
| 420/85-30 | - | - | - | - | x | x | x | x | x | x | x | x |
| 480/70-30 | - | - | - | - | x | x | x | x | x | x | x | x |
| 540/65-30 | - | - | - | - | x* | x* | x* | x | x | x | x | x |
* With pivoting fenders only |
||||||||||||
OU12401,0001AB6 -19-18SEP08-1/1 |
