Tread Widths
|

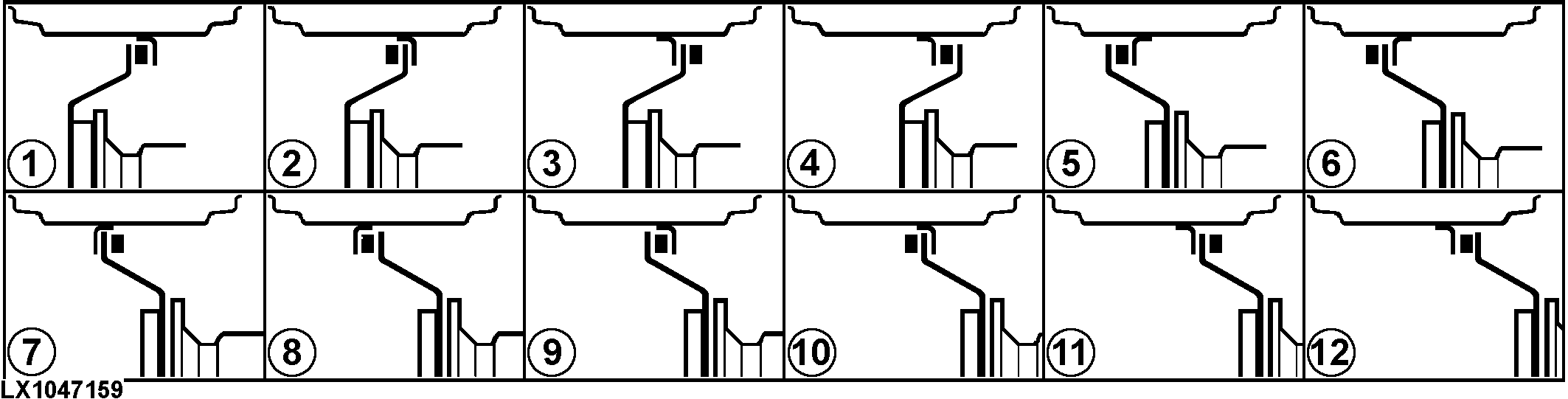

| Positions of rims, wheel disks and spacers |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
| mm (in.) |
1632 (64.3) |
1662 (65.4) |
1708 (67.2) |
1738 (68.4) |
1724 (67.9) |
1754 (69.1) |
1800 (70.9) |
1830 (72.0) |
1928 (75.9) |
1958 (77.1) |
2004 (78.9) |
2034 (80.1) |
| Tires: | ||||||||||||
| 650/65R38 | - | - | - | - | - | x | x | x | x | x | x | x |
| 710/70R38 | - | - | - | - | - | - | - | x | x | x | x | x |
| 20.8R42 | x | x | x | x | x | x | x | x | x | x | x | x |
| 520/85R42 | x | x | x | x | x | x | x | x | x | x | x | x |
| 580/70R42 | - | - | x | x | x | x | x | x | x | x | x | x |
| 620/70R42 | - | - | - | x | x | x | x | x | x | x | x | x |
| 650/65R42 | - | - | - | - | - | x | x | x | x | x | x | x |
|
NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.). |
