After the First 4 and 8 Hours of Operation

Tighten rear wheel retaining bolts/nuts


A-500 N·m (370 lb-ft)
B-250 N·m (185 lb-ft)

LX1047160

OU12401,0001AB9 -19-22SEP08-1/2

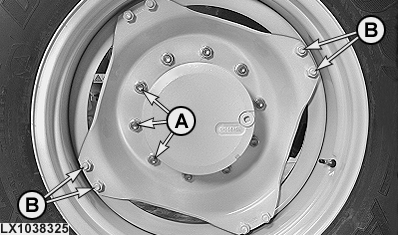

Tighten front wheel retaining bolts/nuts


A-480 N·m (355 lb-ft)
B-250 N·m (185 lb-ft)

LX1038325

OU12401,0001AB9 -19-22SEP08-2/2
