Change Transmission/Hydraulic Oil

2. Park tractor so that it is level. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

3. Shut off engine and remove the key.

4. Apply handbrake (transmission in park).

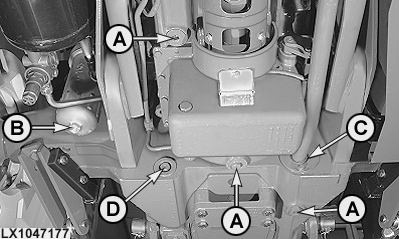

5. Remove drain screws (A).

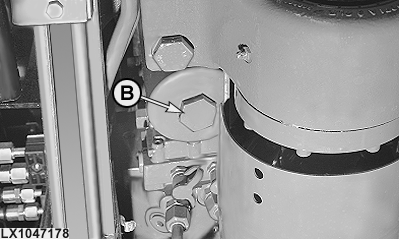

6. Replace transmission/hydraulic oil filter elements (B).

7. Remove oil line (C) and screw-plug (D). Pull out intake screens and wash them in fuel. Clean the area where the intake screens are installed. Re-install the intake screens.

8. Before refilling with fresh oil, replace seals and tighten drain screws to 50 N·m (35 lb-ft).

9. Add transmission/hydraulic oil to the transmission case. For capacities, see Specifications.

Run engine briefly and operate hydraulic functions. Shut off engine.

Wait for between 10 and 15 minutes before checking the oil level. It should be between the marks on the sight-glass. If not, correct oil level.

A-Drain screws
B-Transmission/hydraulic oil filters
C-Oil line
D-Screw-plug

OU12401,0001BB0 -19-09MAY09-1/1
