Mobile Power Supply

causym CAUTION: If the mobile power supply is not operated properly, there is the risk of electrical shock. Only undamaged, safe equipment and leads are authorized for use. If in doubt, contact the manufacturer to obtain information on the safe use of your equipment.

Any damage to the plugs and their orange-colored leads must be rectified by a John Deere dealer immediately.

The mobile power supply has electrical protective separation to IEC 60364 / VDE 0100. If a fault develops, equipment with protective bonding conductor lead to protective disconnection. Observe the following points:

  • Connect equipment as directly as possible
  • Use only short extensions
  • Do not use multiple sockets. Never use multiple sockets connected in series.
LX1044971

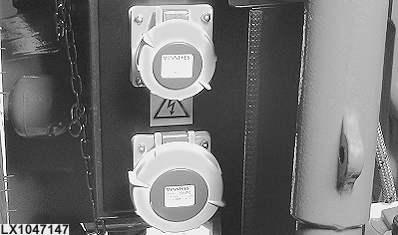

LX1047147

OU12401,0001C51 -19-16JUN09-1/2

IMPORTANT: Use adequate equipment with appropriate plugs and couplings only. Protect plugs and couplings against damp and damage. Damaged plugs must not be used. Plugs must not be pulled out of the socket by the flexible lead.

IMPORTANT: Consumers with high starting currents may cause the mobile power supply to shut down. These include equipment driven by an electric motor and requiring a starting current that is usually many times higher than the specified rating. With its electronic control, the mobile power supply attempts to limit the starting current, enabling borderline equipment to be operated. This may result in delayed starting/initial behaviour. In all cases, pay attention to the manufacturers' instructions relating to any equipment you operate, and if necessary check whether operation with the mobile power supply may lead to problems. No legal responsibility can be accepted for fault-free operation of connected equipment.

NOTE: On the mobile power supply, AC consumers with capacitors in the input circuit can lead to protective disconnection.

Before driving the tractor, take off all electrical equipment and remove any socket adapters (e.g. CEKON adapter) that are plugged in. Then close all the caps on the sockets and shut the cover that conceals the sockets.

NOTE: The electrical system of the tractor is not suitable for supplying the public grid with electricity.

OU12401,0001C51 -19-16JUN09-2/2
