Additional Weight Package 180 kg (400 lb)

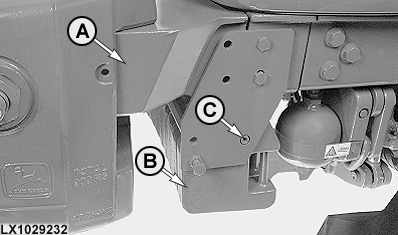

The additional weight package of 180 kg (400 lb) may be used only in conjunction with the 110 kg (240 lb) basic weight (A).

Up to eight quick-attachment weights (B) may be installed, each weighing 20 kg (44 lb).

Each increase in weight of 10 kg (22 lb) increases the front axle load by approx. 12 kg (26.5 lb).

To remove or install, take off hex. nut (C). Install or remove the quick-attachment weights one at a time.

OU12401,00103DF -19-01MAR03-1/1
