Manual Park Lock Release (Tractors with AutoPowr)

causym CAUTION: Perform the manual park lock release procedure only when the tractor needs to be towed and park cannot be released normally via the reverser lever.

causym CAUTION: The reverser lever must be in the Park position "P" to manually release the park lock.

causym CAUTION: The tractor must never be operated (even for short test drives) when park is manually released.

causym CAUTION: The tractor can roll away when park is disengaged. Secure the tractor so that it cannot roll either forwards or backwards.

causym CAUTION: After towing, the manual park lock release cable must be disconnected.

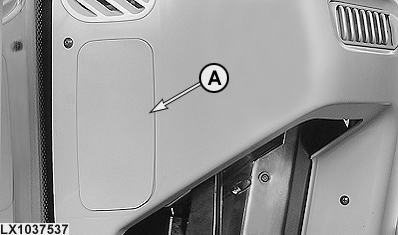

1. Remove cover (A).

LX1037537

OULXE59,001082C -19-20OCT05-1/7

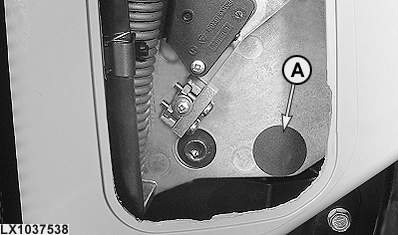

2. Take plug (A) out of the threaded bore.

LX1037538

OULXE59,001082C -19-20OCT05-2/7

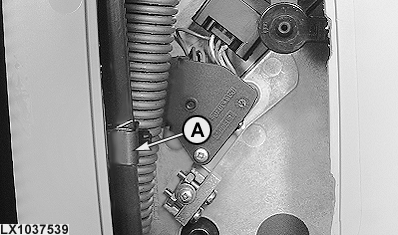

3. Disconnect the bowden cable from clamp (A).

LX1037539

OULXE59,001082C -19-20OCT05-3/7

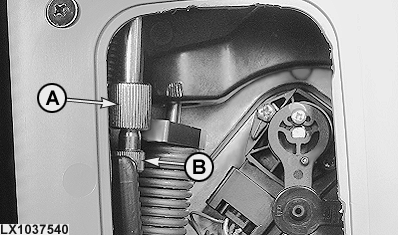

4. Unscrew threaded stud (A) and knurled nut (B).

LX1037540

OULXE59,001082C -19-20OCT05-4/7

5. Slightly depress the clutch pedal.

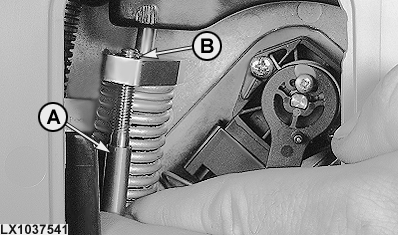

6. Thread the bowden cable (A) through the eye (B) on the clutch pedal or adapter.

LX1037541

OULXE59,001082C -19-20OCT05-5/7

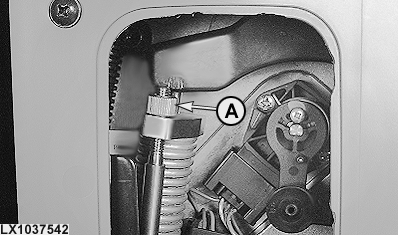

7. Adjust cable with knurled nut (A) until slack is removed. Knurled section must be uppermost.

IMPORTANT: The cable must be tight in order to assure complete release of park.

LX1037542

OULXE59,001082C -19-20OCT05-6/7

8. Fully depress clutch pedal.

IMPORTANT: If the clutch pedal cannot be depressed to the stop and the threaded stud cannot be adjusted further, unscrew the knurled nut until the clutch pedal can be depressed against its stop.

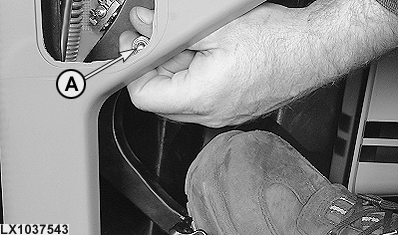

9. Screw threaded stud (A) into the opening in order to secure the clutch in this position and maintain park in the released position.
