Lights

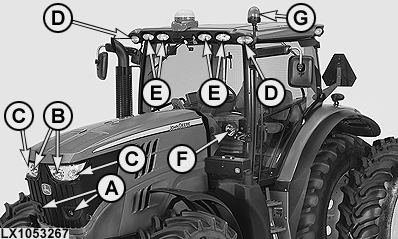

LX1053267-UN-12SEP11

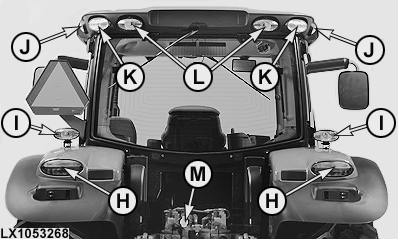

LX1053268-UN-12SEP11

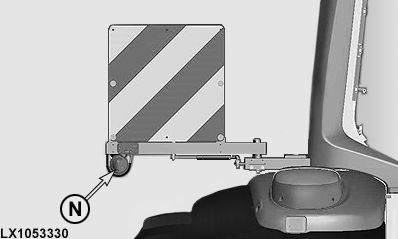

LX1053330-UN-25NOV11

A	Headlights (Low Beam)
B	Headlights (High Beam)
C	Worklights1
D	Turn-Signal Lights (on Front of Roof, Both Sides)
E	Worklights1
F	Additional Headlights1 (Low-Beam and High-Beam) or Worklights1 (on Both Sides of Cab Frame)
G	Beacon Light1
H	Tail Lights, Brake Lights (on Rear of Fenders, Both Sides)
I	Worklights1 (on Rear of Fenders, Both Sides)
J	Worklights1 (on Rear of Roof, Both Sides, Side-Facing)
K	Turn-Signal Lights (on Rear of Roof, Both Sides)
L	Worklights1 (on Rear of Roof)
M	Seven-Terminal Trailer Socket for Lights
N	Extra-Wide Vehicle Lighting1, Both Sides (Hazard-Warning Flasher)

NOTE: H9 bulbs must NOT be used in front corner worklights (C).
