Levers for Mechanical Selective Control Valves

LX1045790-UN-10JAN11

LX1053296-UN-20SEP11

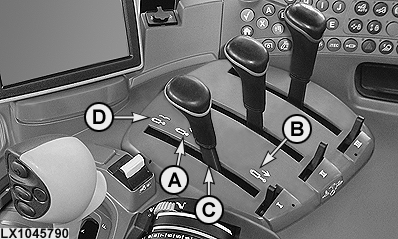

A - Retract

B - Extend

C - Neutral Position

D - Float Position

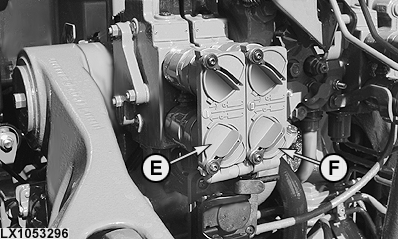

E - Selective Control Valve I

F - Selective Control Valve II

The control lever has four settings.

(A) — In retract position, the control cylinder retracts.

(B) — In extend position, the control cylinder extends.

(C) — In neutral position, the control cylinder is held in position.

(D) — In float position (piston moves freely inside remote cylinder), the mounted implement follows the ground contours.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.
