Levers for Electronic Selective Control Valves

LX1045791-UN-21DEC10

LX1045792-UN-21DEC10

LX1053296-UN-20SEP11

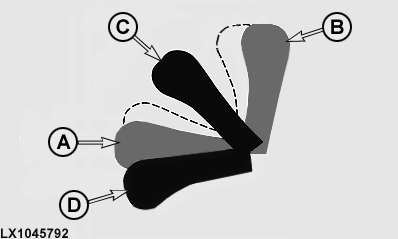

A - Retract

B - Extend

C - Neutral Position

D - Float Position

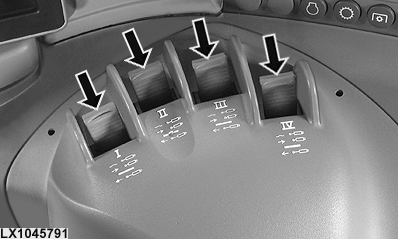

E - Selective Control Valve I

F - Selective Control Valve II

The control lever has four settings.

A — Retract (click position)
In retract position, the control cylinder retracts.

B — Extend (click position)
In extend position, the control cylinder extends.

C — Neutral position (between retract and extend)
In neutral position, the control cylinder is held in position.

D — Float position (detent position)
In float position (piston moves freely inside remote cylinder), the mounted implement follows the ground contours.

NOTE: If the control lever is released in a click position, the lever returns automatically to its neutral position.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.
