Front-Wheel Tread Adjustment with Rims for 16 Positions - 6150R Tractor

LX1053419-UN-16MAR12

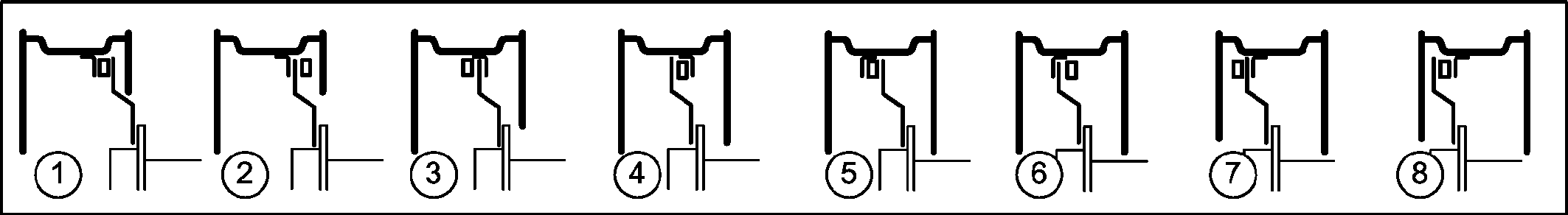

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel dish
Tires:		1	2	3	4	5	6	7	8
320/85R38	1846 mm	2122 mm	2092 mm	2050 mm	2020 mm	1918 mm	1890 mm	1846 mm	1816 mm
	(72.68 in.)	(83.54 in.)	(82.36 in.)	(80.71 in.)	(79.53 in.)	(75.51 in.)	(74.41 in.)	(72.68 in.)	(71.50 in.)
* With steering stop AL180127 only

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

LX1053420-UN-16MAR12

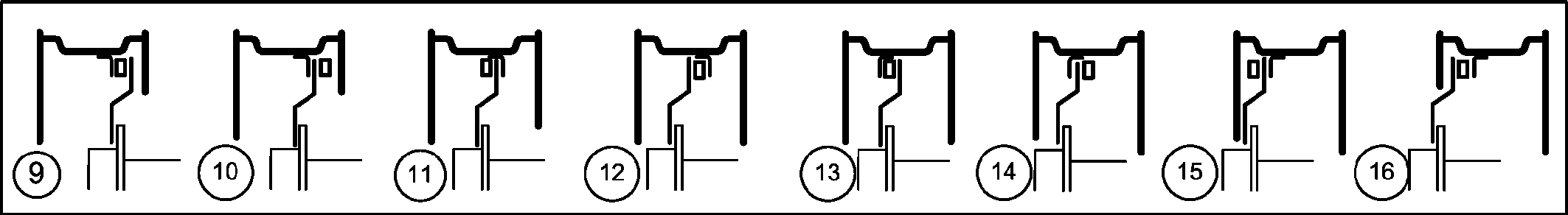

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel dish
Tires:		9	10	11	12	13	14	15	16
320/85R38	1846 mm	1716 mm	1686 mm	1642 mm	1614 mm	1512 mm	1482 mm	1440 mm*	1410 mm*
	(72.68 in.)	(67.56 in.)	(66.38 in.)	(64.65 in.)	(63.54 in.)	(59.53 in.)	(58.35 in.)	(56.69 in.)*	(55.51 in.)*
* With steering stop AL180127 only

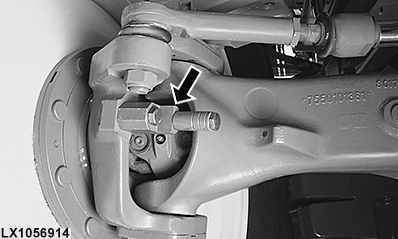

LX1056914-UN-27JUN13

* With steering stop AL180127 only

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
